In the fast-changing world of electronics, getting the hang of the ins and outs of choosing the right components is pretty important. Take the Common Mode Choke, for instance — it’s key when it comes to reducing electromagnetic interference (EMI) in a bunch of devices. According to a recent report from Research and Markets, the global market for these chokes is projected to hit around $1.2 billion by 2025. That honestly shows just how much their role is growing—especially in consumer gadgets, automotive tech, and industrial stuff.
Experts always stress how crucial it is to pick the right component. Dr. Michael Chen, who’s got a lot of background in electromagnetic compatibility at Electra Solutions, mentions, “Choosing the right Common Mode Choke is basically essential if you want your device to work well and last long.” His point really hits home—yet, surprisingly, a lot of buyers tend to overlook some of those key specs.
When you're shopping around, it’s good to keep an eye on things like the choke’s inductance, its rated current, and how it handles temperature. All of these little details can really influence how the whole system performs. But honestly, figuring out all these nuances can be pretty tricky—sometimes you mess up or skip a step. Ignoring these details might lead to your device not working as smoothly as it could. And let’s not forget about the balancing act—trying to find that sweet spot between cost and quality. With so many options out there, even seasoned engineers can feel a bit overwhelmed, which just further highlights why digging into research and carefully reviewing each product is so important.
Common Mode Chokes play a crucial role in electronic systems. They filter out electromagnetic interference (EMI), ensuring smooth operation. Understanding the basics of Common Mode Chokes helps in making informed buying decisions.
When considering Common Mode Chokes, one important factor is the core material. Techniques vary widely between ferrite and nanocrystalline materials. ANanocrystalline Common Mode Choke offers superior performance due to its higher permeability. This results in better EMI suppression across a broader frequency range. Buyers should look for specifications that detail inductance values and current ratings.
Another aspect to consider is the design and size. Some designs may look compact but can compromise efficiency. Real-world testing shows that larger chokes often outperform smaller counterparts. However, space constraints in projects sometimes lead to tough choices. It's essential to balance physical size with performance requirements. Reflecting on your specific application can help direct which model fits best.
| Tip Number | Tip Description | Key Feature | Common Applications |
|---|---|---|---|
| 1 | Understand your operating frequency range | Frequency response | Power supplies, audio equipment |
| 2 | Check the current rating | Max current capacity | Motor drives, industrial equipment |
| 3 | Consider the impedance matching | Impedance characteristics | Radio frequency applications, telecommunications |
| 4 | Evaluate thermal performance | Heat dissipation | High power electronics, automotive |
| 5 | Inspect for quality and certification | Quality assurance | Safety-critical systems, consumer electronics |
: Impedance rating shows how well the choke suppresses noise. Higher values improve noise suppression, but can affect signal integrity.
Ferrite cores are popular. They have high magnetic permeability and enhance inductance in a compact size.
The right core material can improve performance. It can lead to enhancements of up to 30% based on frequency and temperature.
The choke must handle required currents without saturating. Ignoring this can lead to performance loss in the system.
Regular inspections are vital. They help identify wear and potential failures before they lead to significant issues.
Look for overheating or discoloration on the core and windings. These signs indicate possible underlying problems.
A multimeter is essential for measuring resistance. It helps detect issues that may not be visible.
No, some failures are internal and not visible. Thorough testing is essential for reliable performance.
Regular maintenance extends their lifespan. It helps avoid unexpected failures and costly repairs.
Yes, keeping a log tracks inspections and helps spot trends. This proactive approach prevents larger issues.

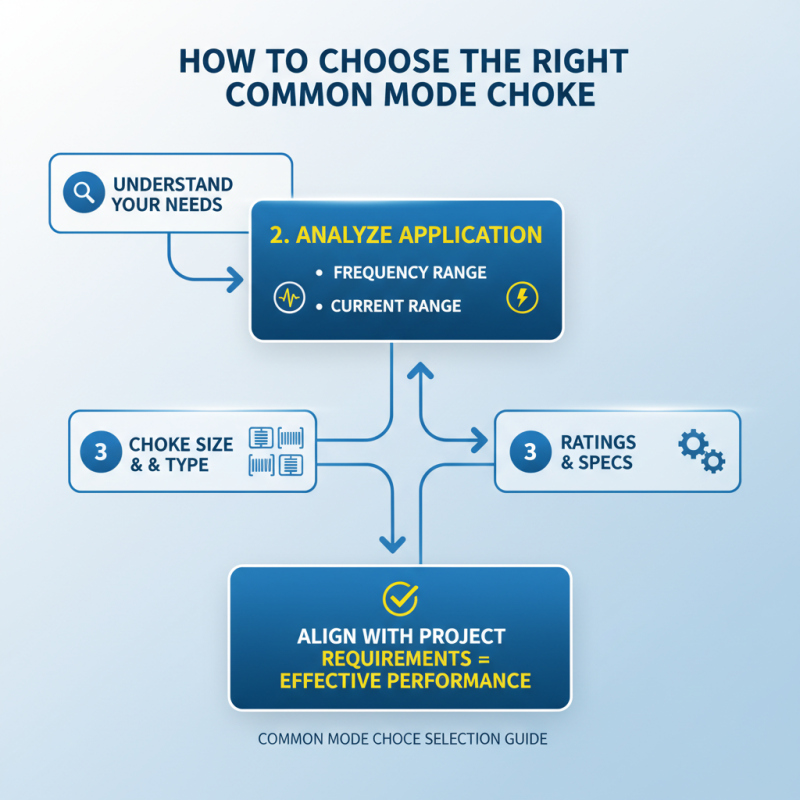

Common Mode Chokes are essential components in electronic circuits, designed to suppress electromagnetic interference by filtering out common mode noise. Understanding the basic principles of common mode chokes, including their different types and applications, is crucial for buyers looking to enhance their device performance. When selecting the right common mode choke, it’s important to consider various specifications and installation techniques that can optimize their functionality.

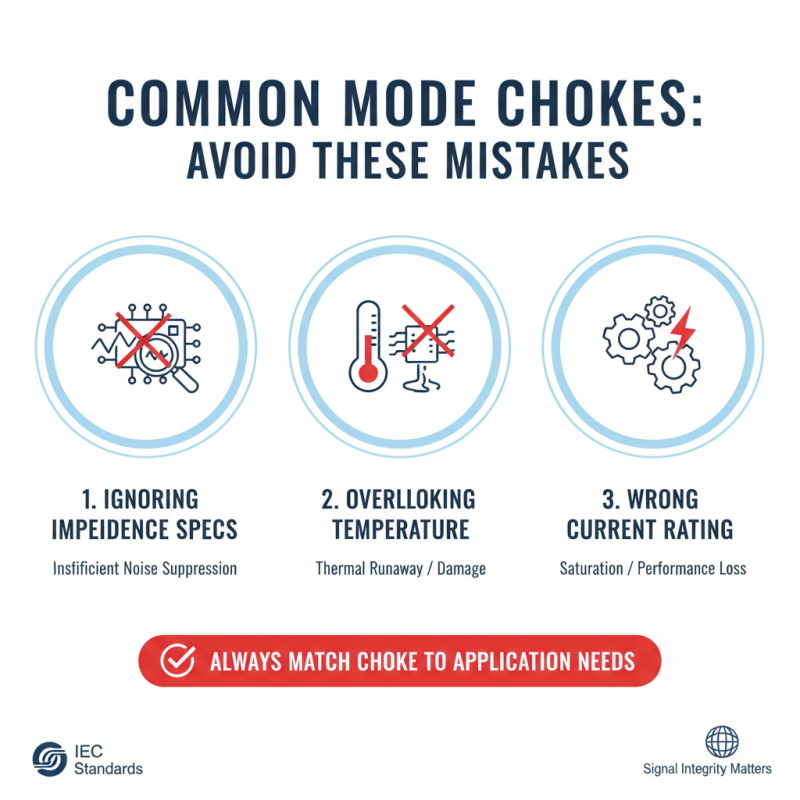

To ensure longevity and reliability, users should also be aware of common mistakes that can occur during installation and usage. Regular maintenance and testing are vital to keep common mode chokes operating effectively. By following these tips and guidelines, buyers can make informed decisions and achieve the best outcomes in their electronic projects.
